JEVB500 Series

The JEVB500 Series is a product range from Jennings® DC Contactors with a current rating of 500 A.

Product number configurator

Product number configurator JEVB500 Series

JEVB500 Series features

  • 500 A current rating
  • Bidirectional switching device
  • A simple solution for applications that require charging and discharging because it safely cuts off the current flowing through the main contact in the opposite direction
  • UL508 listed for the U.S. and Canada
  • RoHS compliant
  • Hermetically sealed, intrinsically safe, operates in explosive/harsh environments with no oxidation or contamination of coils or contacts during long periods of non-operation
  • Rugged, compact contactor for switching voltages from 50 VDC to 1000+ VDC
  • High-efficiency DC coils – Very low 12 and 24 VDC continuous power coils with no EMI emissions or cross-talk on your system control power

JEVB500 specifications

Contact arrangement1 Form A, SPST-NO
Max. continuous current (A)500
Max. switching current500 A at 750 VDC (UL)
300 A at 1000 VDC (UL)
100 A at 1500 VDC (UL)
Contact rating switching voltages 12 - 1500 VDC / 1000 VAC
Max. switching capacity at max. voltage300 A at 1500 VDC
General aux. contact current, max.2 A, 30 VDC / 3A, 125 VAC
General aux. contact current, min.100 mA, 8 VDC
Gold alloy aux. contact current, max.0.1 A, 30 VDC / 0.1 A, 30 VAC
Gold alloy aux. contact current, min. 1 mA, 5 VDC / 1 mA, 5 VAC
Operating time at nominal voltage (msec.)40
Release time at nominal voltage (msec.)10
Coil ratings
Nom. voltage (V)1224
Inrush coil current 100 ms (max.) (A)1,41,1
Holding coil current (A)0,320,16
Pick-up voltage max. (VDC)918
Drop-out voltage min. (VDC)612
Holding voltage min. (VDC)7,513,5
Max. voltage (VDC)1832
Expected life
Mechanical life (min.)2,000,000 operations
Electrical life (min.)1,000 at 750 VDC (+), (-) 500 A
1,000 at 1,000 VDC (+), (-) 300 A
1,000 at 1,500 VDC (+), (-) 100 A
Weight980 g (2.16 lb.)
Operating and storage temperature-40 °F ~ 185 °F (-40 °C ~ 85 °C)
Relative humidity5-85%

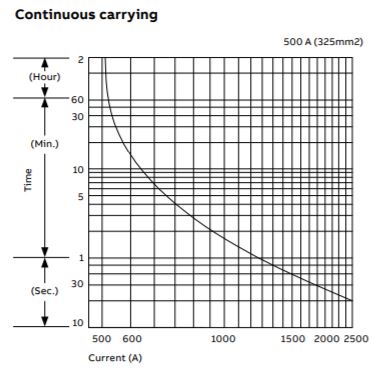

Continuous carrying

Continuous carrying - JEVB500 Series

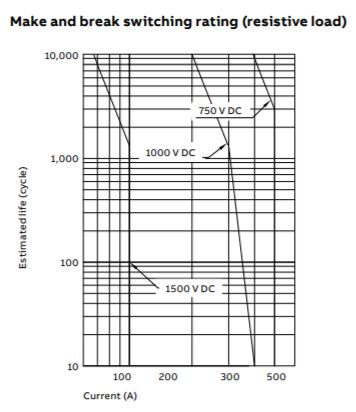

Make and break switching rating (resistive load)

Make and break switching rating (resistive load)

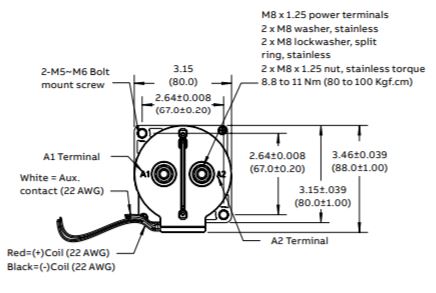

Illustration 2 - JEVB500 Series Illustration 1 - JEVB500 Series
