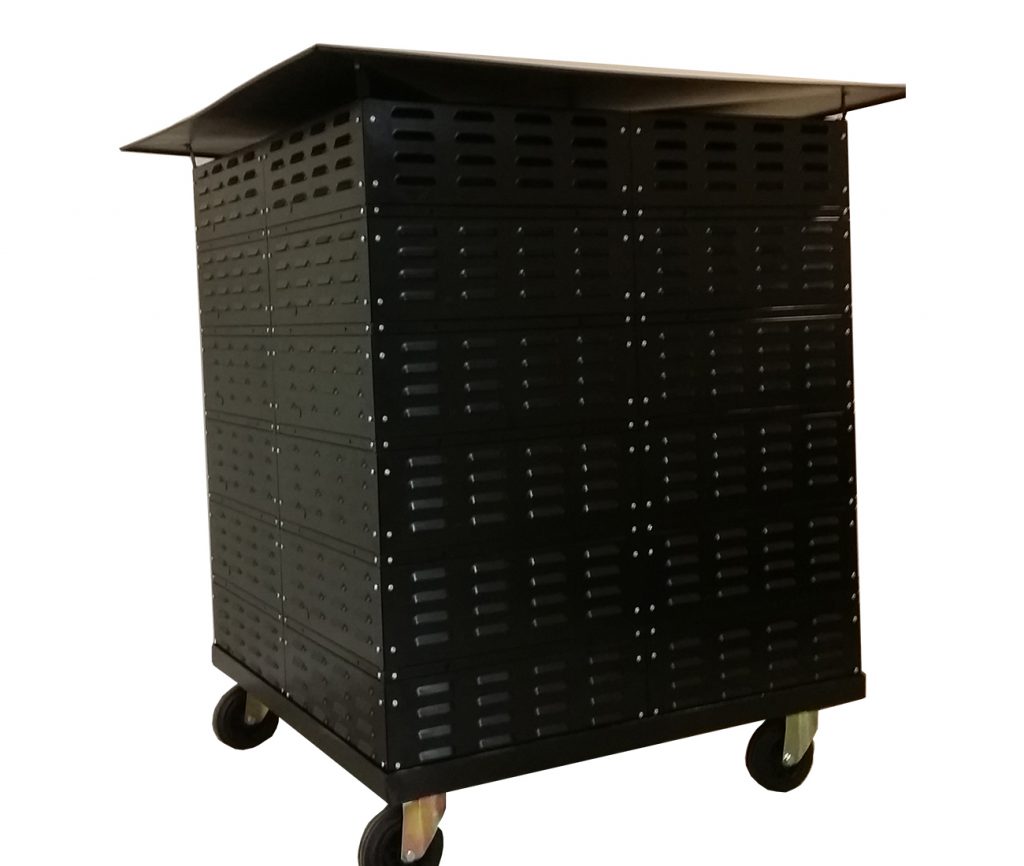

100kW Loadbank

100kW loadbank is mounted on wheels and has 96 resistors.

The enclosure have 6 layers, using 2 layers per phase. Each phase have 32 x 64 Ohm resistors connected in parallel. Each phase have it’s own connection. 33kW per phase, 2 Ohms per phase and star connection between the 3 phases with thermal cut out.

Features and benefits:

  • 100kW loadbank
  • Mobile unit on wheels
  • Star connection with 33kW and 2 Ohms per phase
  • Adjustable power
  • No forced cooling needed
