Cell Pack

Ultracapacitor module for energy storage systems.

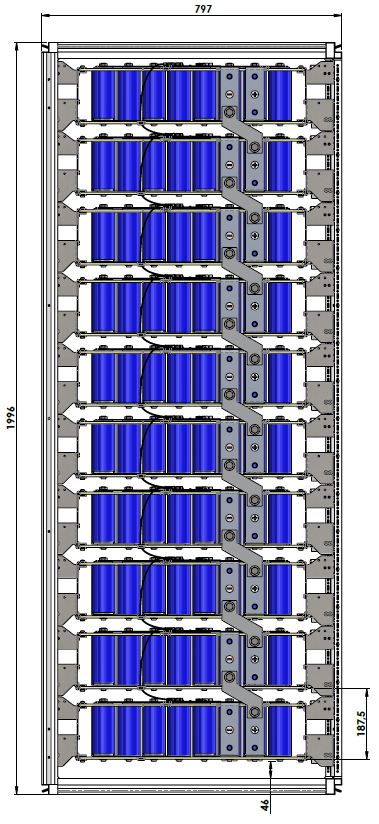

AEP Hybrid Power offers a cost effective structure to mount the ultracapacitors in cubicles. The so called ”Cellpack Modules” are frames which are an advanced way of balancing and monitoring the ultracapacitors. This prevents dangerous situations and obtains the maximum lifetime from the ultracapacitors.

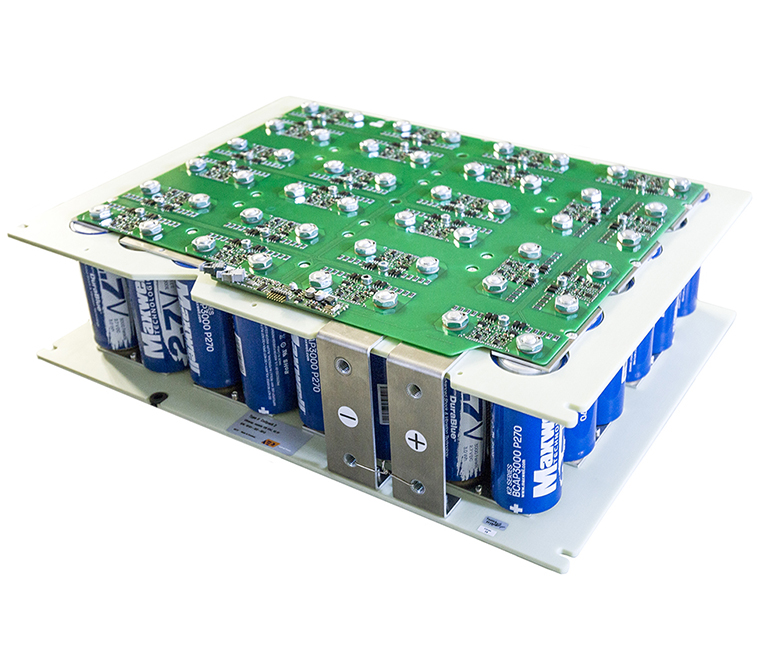

Each module is able to support up to 48 ultracapacitors and could be charged up to 120VDC. The balancing and monitoring structure is based on three levels:

  • Individual cell level
  • Unit level
  • System level

On all levels the voltage and temperature are measured as these are the most important parameter for the lifetime and performance of the ultracapacitors. When required also a current sensor could be implemented.
