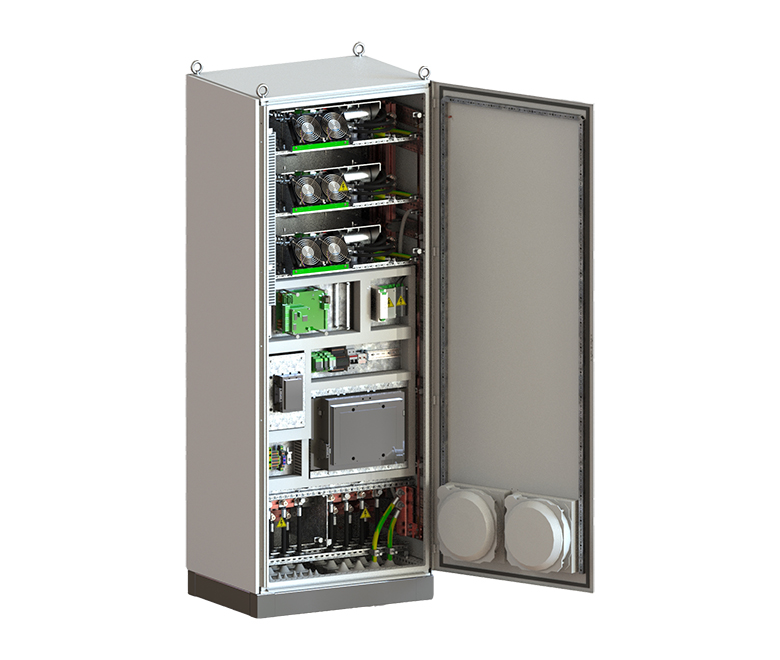

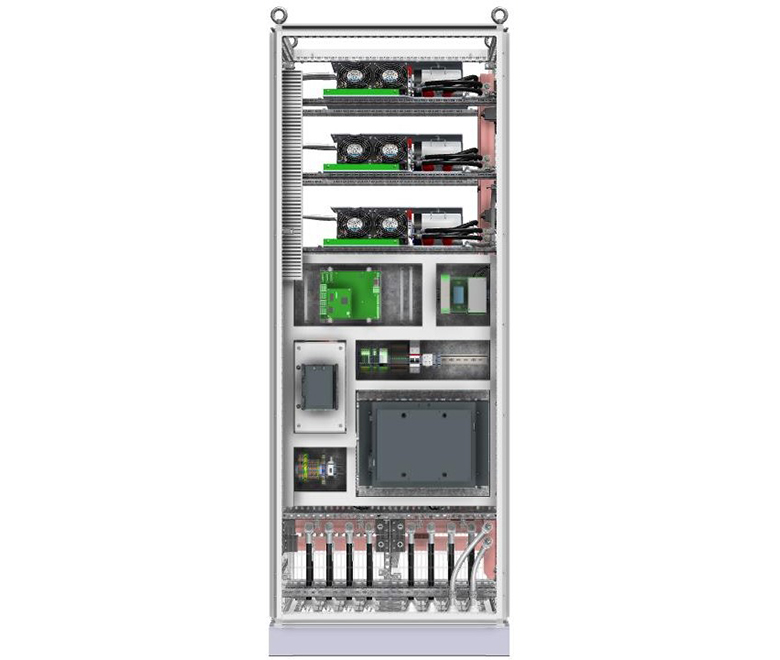

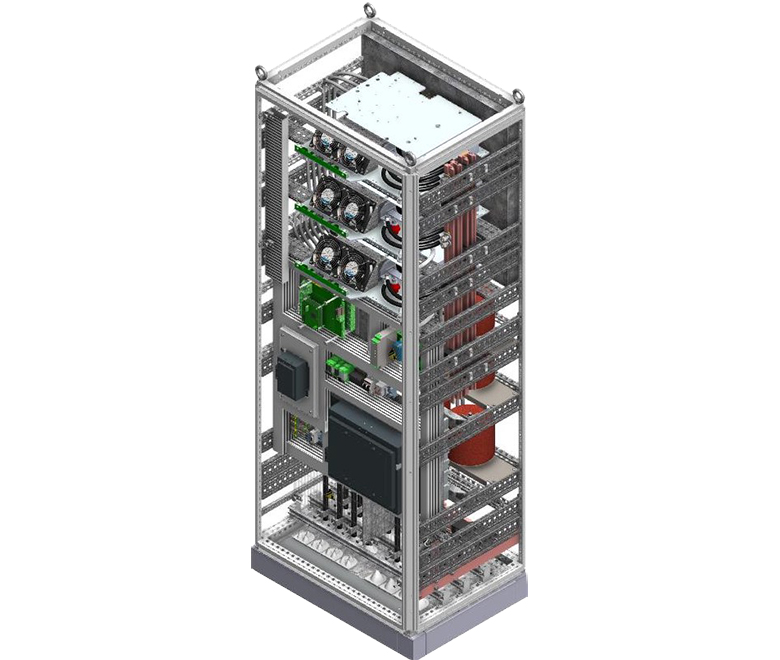

AEP900

1000kW bidirectional DC/DC converter for energy storage systems.

Our AEP900 is specially designed to cooperate with our Ultracapacitor modules but are also perfectly capable of working with another energy source, like batteries.
The AEP900 is bidirectional and is able to work as a DC/DC converter and can be modified to be suitable for every application.

Features

  • Maximum operational voltage: 850V
  • Maximum rated power: 1000kW
  • Step up and step down mode
  • Bidirectional
  • DC/DC converter
  • Binary and analog I/O
  • RS 232 / CAN bus interface
  • 24 VDC supply, 230 VAC supply
  • Air-cooling
  • Main contactor + Pre-charge
  • IP45

Options

  • Profibus/Profinet
  • Available in 1200V variant
